Small Combo Rice Mill 6LN-15 & 6LN-20 — Compact All-in-One Milling Unit

Entry model 600–800 kg/h · 6LN-15 700–1,000 kg/h · 6LN-20 900–1,200 kg/h paddy · 72–76% milling rate · cleaning, husking, milling & grading in one unit

A complete rice mill in one combined unit

Not every market needs a 25–300 t/day plant. For village mills, cooperatives, rice shops and first-time investors, the 6LN-15 and 6LN-20 combo rice mills integrate cleaning, husking, milling and grading into one compact production unit — white rice from paddy with a single machine group and a modest workshop footprint.

All three models run on 380 V / 50 Hz three-phase power and can be upgraded later with polisher, color sorter and packing modules as your business grows — start small today, expand without replacing the core unit.

Key technical parameters

Model	Capacity (paddy)	Milling rate	Installed power	Power supply
Entry rice mill	600–800 kg/h	72–76%	25.32 kW	380 V / 50 Hz
6LN-15 combo rice mill	700–1,000 kg/h	72–76%	34.32 kW	380 V / 50 Hz
6LN-20 combo rice mill	900–1,200 kg/h	72–76%	37.8 kW	380 V / 50 Hz

All three models run on 380 V / 50 Hz three-phase supply. The 72–76% milling rate is nominal — actual output depends on paddy variety, moisture and drying condition.

Two plant configurations — Standard and Premium

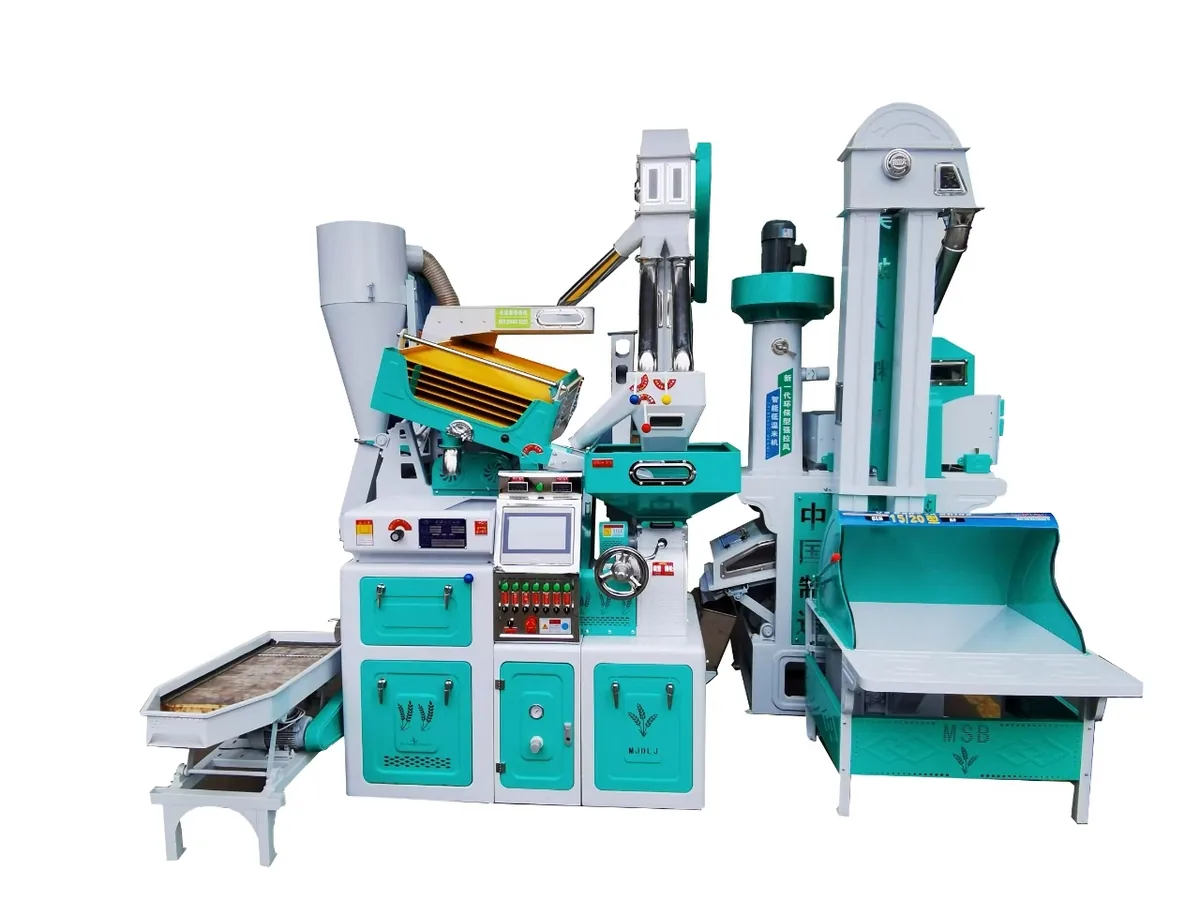

Standard configuration

The standard combo configuration for a straightforward paddy-to-white-rice operation — a pragmatic first investment for a new milling business.

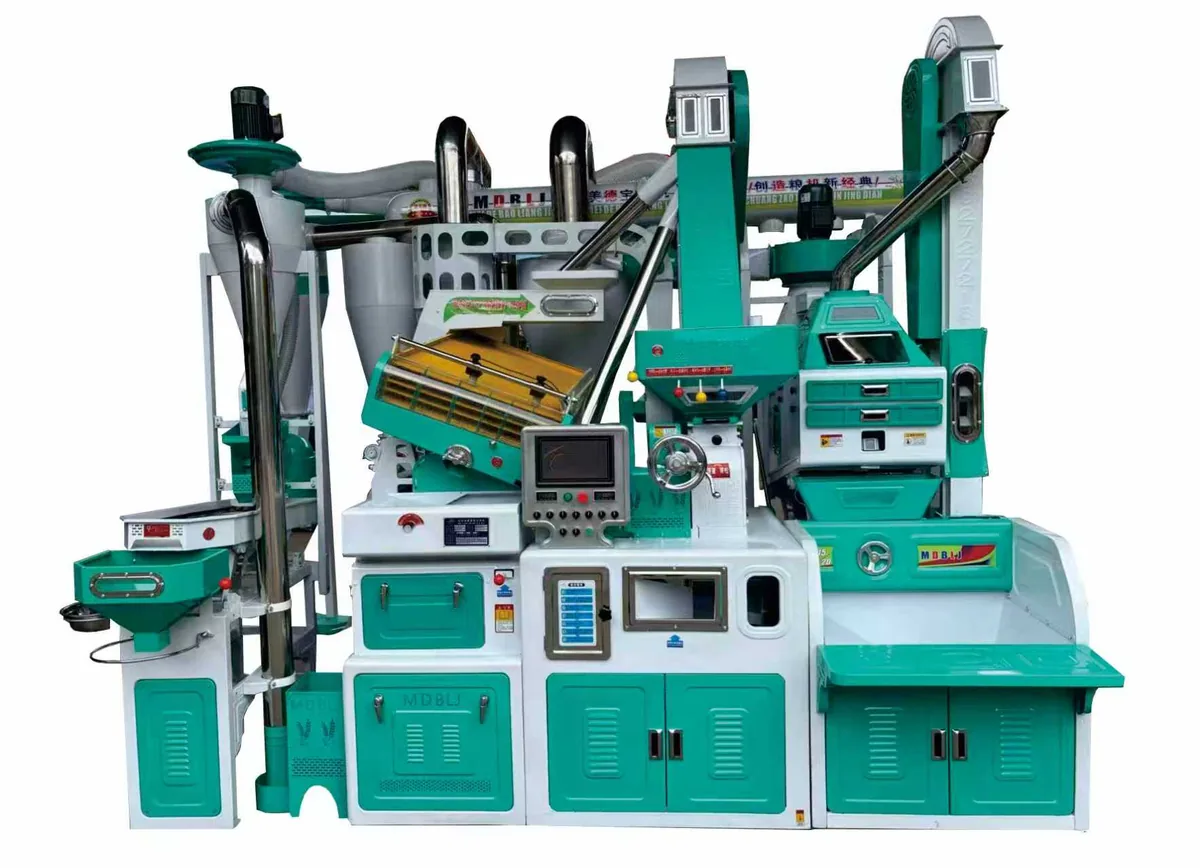

Premium configuration

An upgraded configuration for higher finished-rice quality and a wider product range. Tell us your target market and grade requirements — our engineers will recommend the right version.

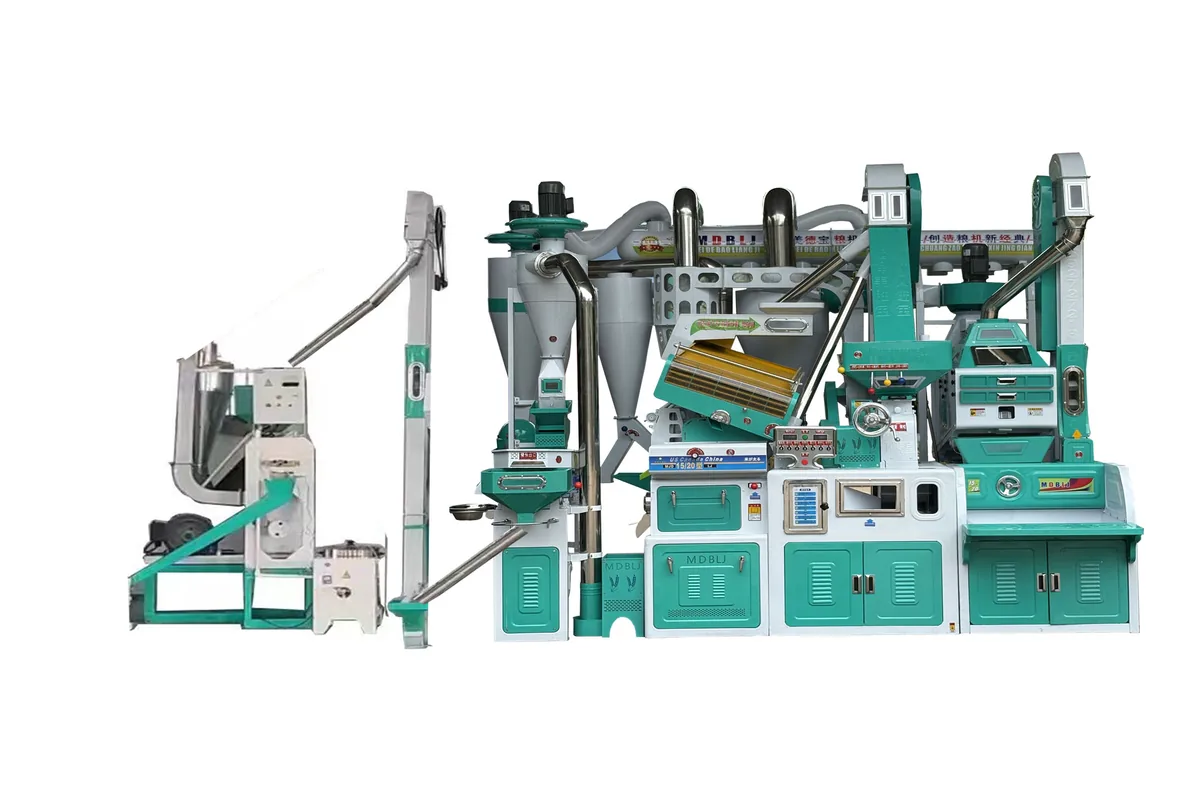

From a single unit to a complete small line

Optional modules can be added around the combo unit as your volumes grow:

• Bucket elevator — raw material lifting, less manual handling
• Rice polisher — brighter, smoother finished rice
• Color sorter — removes discolored and broken grains
• Packing scale — bagged output ready for retail

We configure the set around your budget, workshop and target sales channel — from a single combo unit to a complete small rice line.

Process flow

Paddy → Cleaningdestoner & impurities → Husking → Milling → Polishingoptional module → Grading → Packingoptional module

Tell us your capacity and target market

Our engineers will configure the right combo rice mill — entry unit, 6LN-15, 6LN-20 or a complete small line — around your budget.

Frequently asked questions

Which model fits my daily volume?

The entry model at 600–800 kg/h suits village mills and new businesses; the 6LN-15 and 6LN-20 cover commercial operation up to 900–1,200 kg/h of paddy. Tell us your volume and market — we will recommend the right model.

What milling rate can I expect?

The nominal milling rate is 72–76%. The actual figure depends on paddy variety, moisture and drying condition — properly dried paddy gives the best result.

Can the unit be expanded into a full line later?

Yes. Bucket elevator, rice polisher, color sorter and packing scale can all be added around the combo unit — you start small and expand without replacing the core machine group.

Do you provide installation guidance and operator training?

Yes. We provide installation guidance and operator training under our standard export service terms, with documentation and remote technical support throughout the equipment lifecycle.

Is there an entry model?

Yes. The 600–800 kg/h paddy entry model is listed with its full parameters in the table above. Tell us your paddy volume and target market — we will recommend the right starting configuration.
